Installing a rooflight is one of the best ways to transform a space, bringing in natural light and creating a brighter, more open feel. However, before you can enjoy the benefits, it’s essential to get the measurements right. Accurate measuring ensures your rooflight fits perfectly, performs efficiently, and avoids costly mistakes during installation.

Whether you’re planning a new build, extension, or renovation project, in this guide will walk you through how to measure for a rooflight correctly.

Why Accurate Measurements Matter

Getting your measurements right is crucial for several reasons. A rooflight that’s too small may not provide the desired level of light, while one that’s too large can create structural challenges and increase costs.

Incorrect measurements can also lead to issues with installation, insulation, and weatherproofing. In some cases, it may even delay your project if adjustments need to be made on-site.

By taking the time to measure carefully, you’ll ensure a smoother installation process and achieve the best possible result for your space.

Understanding Rooflight Sizing

Before you start measuring, it’s important to understand how rooflights are sized. Typically, rooflights are specified based on the size of the structural opening (also known as the “builders’ opening”) or the external upstand/kerb size.

Some suppliers list rooflight sizes as the overall frame size, while others refer to the internal visible glass area. This can sometimes cause confusion, so always check how your chosen supplier defines their measurements.

If you’re unsure, it’s worth confirming whether the dimensions refer to the opening size or the rooflight unit itself before placing an order.

Step 1: Measure the Structural Opening

If you already have a roof opening in place, your first step is to measure it accurately.

Use a tape measure to record the width and length of the opening from edge to edge. Take measurements in multiple places (top, middle, and bottom) to ensure consistency, as openings are not always perfectly square.

Always use the smallest measurement when ordering your rooflight. This allows for slight variations and ensures the unit will fit correctly.

Step 2: Allow for Tolerances

Rooflights are not designed to fit tightly into an opening with no room for adjustment. A small tolerance is usually required to allow for installation and expansion.

Typically, a gap of around 5–10mm on each side is recommended, but this can vary depending on the product and manufacturer guidelines.

Failing to allow for tolerances can make installation difficult and may lead to issues with sealing and insulation.

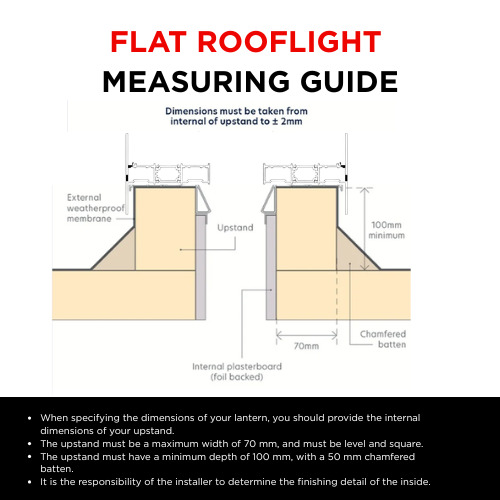

Step 3: Consider the Upstand or Kerb

Many rooflights are installed onto a kerb (also known as an upstand), which raises the unit above the roof surface. This is particularly important for flat roof installations, as it helps with drainage and weatherproofing.

If you’re using a pre-made kerb, you’ll need to measure its external dimensions, as this will determine the correct rooflight size.

If the kerb is being built on-site, ensure it is constructed to the correct dimensions and height before ordering your rooflight. Building regulations typically require a minimum upstand height (often around 150mm) to prevent water ingress.

Step 4: Measure the Roof Area

If you’re installing a new rooflight and don’t yet have an opening, you’ll need to measure the available roof space.

Consider the size and layout of the room below, as well as the amount of natural light you want to achieve. As a general rule, the total area of glazing should be around 10–20% of the floor area for optimal daylight.

Also, think about the positioning of the rooflight. Placing it centrally or in line with key features can enhance the overall look and maximise light distribution.

Step 5: Check Roof Pitch and Type

The type of roof you have will also affect your measurements and rooflight choice.

For flat roofs, kerbs are typically required, and the pitch is usually minimal. For pitched roofs, the rooflight may be installed directly into the slope, and the angle will influence the type of unit you need.

Make sure you measure the pitch of your roof and check that your chosen rooflight is suitable for that angle.

Step 6: Double Check Everything

It might sound obvious, but double-checking your measurements is one of the most important steps in the process.

Measure everything at least twice and, if possible, have someone else verify your measurements. Even small errors can lead to significant issues during installation.

Taking the extra time now can save you time, money, and frustration later on.

Common Mistakes to Avoid

When measuring for a rooflight, there are a few common mistakes to watch out for:

• Measuring only once and not verifying accuracy
• Confusing structural opening size with overall rooflight size
• Forgetting to allow for installation tolerances
• Not accounting for the kerb or upstand
• Ignoring roof pitch and compatibility

Avoiding these pitfalls will help ensure a smooth and successful installation.

Should You Get Professional Help?

While it’s possible to measure for a rooflight yourself, many homeowners choose to work with professionals for added peace of mind.

Builders, roofers, or suppliers can provide guidance and ensure measurements are accurate. This is especially useful for more complex projects or bespoke rooflight designs.

If you’re unsure at any stage, it’s always worth seeking expert advice before placing your order.

Final Thoughts

Measuring for a rooflight doesn’t have to be complicated, but it does require care and attention to detail. By understanding how rooflights are sized, measuring accurately, and allowing for tolerances, you can ensure a perfect fit for your project. A well-measured rooflight not only looks better but also performs more efficiently, providing long-lasting benefits for your home.
